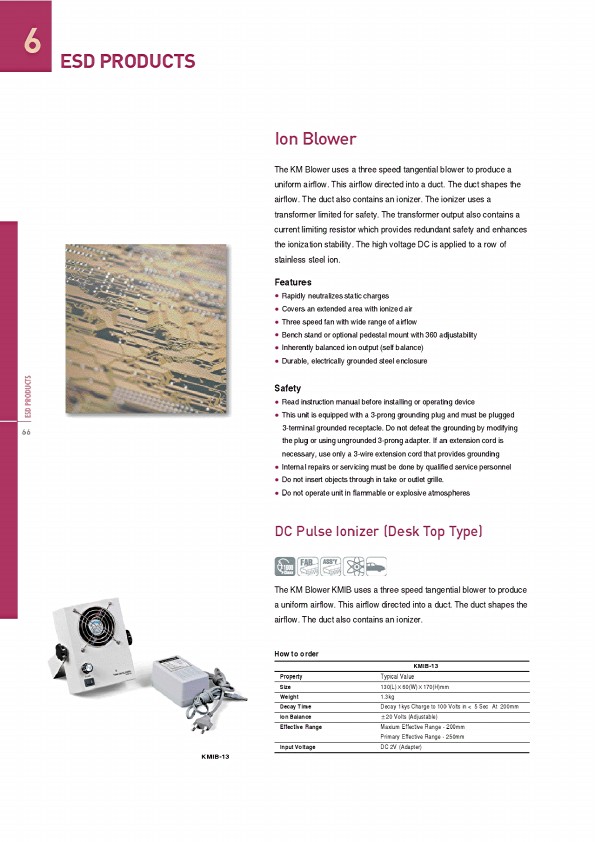

6 ESD PRODUCTS ESD PRODUCTS 66 KMIB13 Ion Blower The KM Blower uses a three speed tangential blower to produce a uniform airflow This airflow directed into a duct The duct shapes the airflow The duct also contains an ionizer The ionizer uses a transformer limited for safety The transformer output also contains a current limiting resistor which provides redundant safety and enhances the ionization stability The high voltage DC is applied to a row of stainless steel ion Features ● Rapidly neutralizes static charges ● Covers an extended area with ionized air ● Three speed fan with wide range of airflow ● Bench stand or optional pedestal mount with 360 adjustability ● Inherently balanced ion output (self balance) ● Durable electrically grounded steel enclosure Safety ● Read instruction manual before installing or operating device ● This unit is equipped with a 3prong grounding plug and must be plugged 3terminal grounded receptacle Do not defeat the grounding by modifying the plug or using ungrounded 3prong adapter If an extension cord is necessary use only a 3wire extension cord that provides grounding ● Internal repairs or servicing must be done by qualified service personnel ● Do not insert objects through in take or outlet grille ● Do not operate unit in flammable or explosive atmospheres DC Pulse Ionizer (Desk Top Type) The KM Blower KMIB uses a three speed tangential blower to produce a uniform airflow This airflow directed into a duct The duct shapes the airflow The duct also contains an ionizer How to order Property Size Weight Decay Time Ion Balance Effective Range Input Voltage KMIB13 Typical Value 130(L)×60(W)×170(H)mm 13kg Decay 1kys Charge to 100 Volts in < 5 Sec At 200mm ±20 Volts (Adjustable) Maxium Effective Range 200mm Primary Effective Range 250mm DC 2V (Adapter)

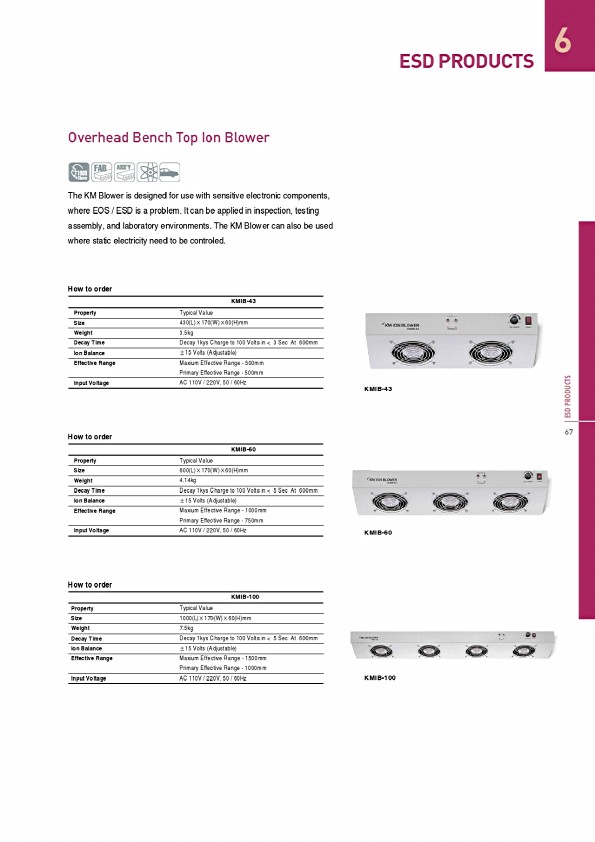

Overhead Bench Top Ion Blower The KM Blower is designed for use with sensitive electronic components where EOS / ESD is a problem It can be applied in inspection testing assembly and laboratory environments The KM Blower can also be used where static electricity need to be controled How to order Property Size Weight Decay Time Ion Balance Effective Range Input Voltage How to order Property Size Weight Decay Time Ion Balance Effective Range Input Voltage How to order Property Size Weight Decay Time Ion Balance Effective Range Input Voltage KMIB43 Typical Value 430(L)×170(W)×60(H)mm 35kg Decay 1kys Charge to 100 Volts in < 3 Sec At 600mm ±15 Volts (Adjustable) Maxium Effective Range 500mm Primary Effective Range 500mm AC 110V / 220V 50 / 60Hz KMIB60 Typical Value 600(L)×170(W)×60(H)mm 414kg Decay 1kys Charge to 100 Volts in < 5 Sec At 600mm ±15 Volts (Adjustable) Maxium Effective Range 1000mm Primary Effective Range 750mm AC 110V / 220V 50 / 60Hz KMIB100 Typical Value 1000(L)×170(W)×60(H)mm 75kg Decay 1kys Charge to 100 Volts in < 5 Sec At 600mm ±15 Volts (Adjustable) Maxium Effective Range 1500mm Primary Effective Range 1000mm AC 110V / 220V 50 / 60Hz KMIB43 KMIB60 KMIB100 ESD PRODUCTS 6 ESD PRODUCTS 67
