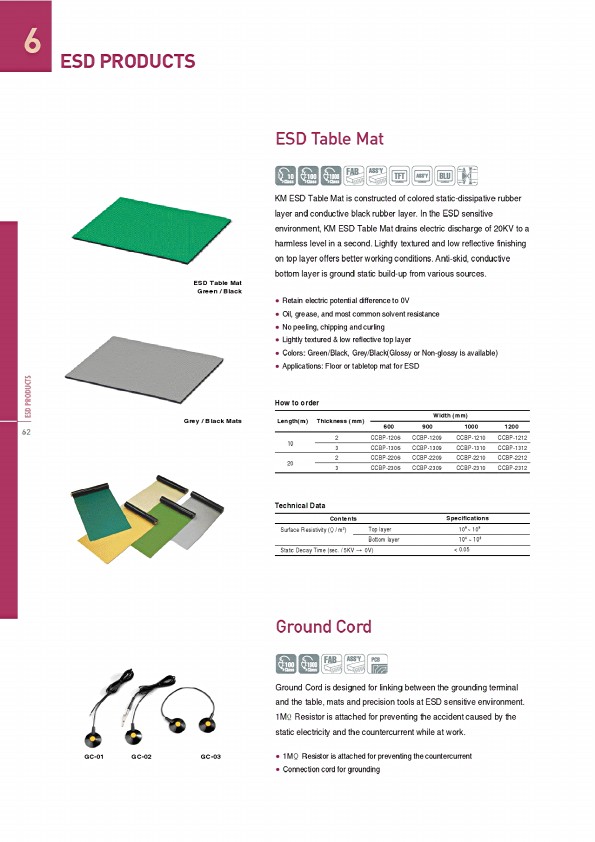

6 ESD PRODUCTS ESD PRODUCTS 62 ESD Table Mat Green / Black Grey / Black Mats GC01 GC02 GC03 ESD Table Mat KM ESD Table Mat is constructed of colored staticdissipative rubber layer and conductive black rubber layer In the ESD sensitive environment KM ESD Table Mat drains electric discharge of 20KV to a harmless level in a second Lightly textured and low reflective finishing on top layer offers better working conditions Antiskid conductive bottom layer is ground static buildup from various sources ● Retain electric potential difference to 0V ● Oil grease and most common solvent resistance ● No peeling chipping and curling ● Lightly textured & low reflective top layer ● Colors: Green/Black Grey/Black(Glossy or Nonglossy is available) ● Applications: Floor or tabletop mat for ESD How to order Length(m) Thickness (mm) 10 20 2 3 2 3 Width (mm) 600 900 1000 1200 CCBP1206 CCBP1306 CCBP2206 CCBP2306 Technical Data Contents Surface Resistivity (Ω/ m2 ) Top layer Bottom layer Static Decay Time (sec / 5KV → 0V) Ground Cord CCBP1209 CCBP1309 CCBP2209 CCBP2309 CCBP1210 CCBP1310 CCBP2210 CCBP2310 Specifications 10 8 10 9 10 4 10 5 < 005 CCBP1212 CCBP1312 CCBP2212 CCBP2312 Ground Cord is designed for linking between the grounding terminal and the table mats and precision tools at ESD sensitive environment 1MΩResistor is attached for preventing the accident caused by the static electricity and the countercurrent while at work ● 1MΩ Resistor is attached for preventing the countercurrent ● Connection cord for grounding

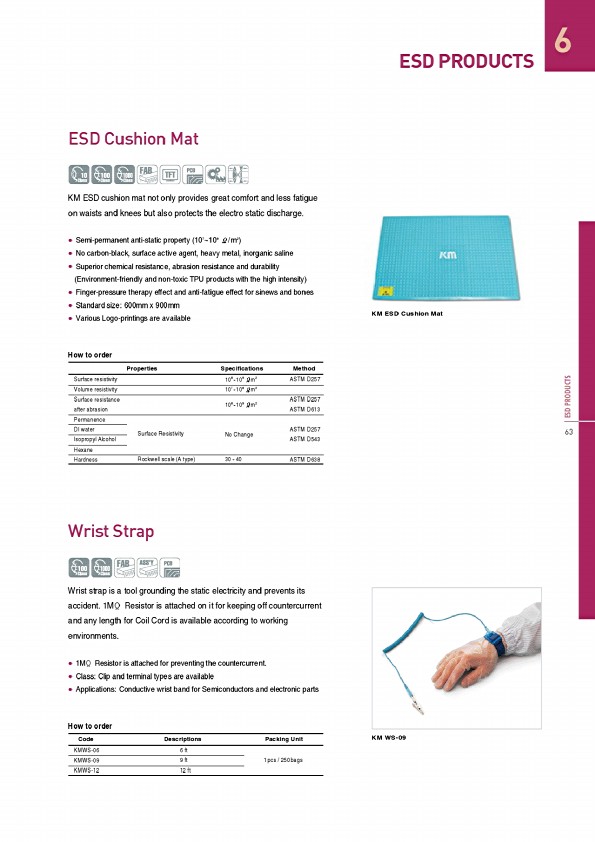

ESD Cushion Mat KM ESD cushion mat not only provides great comfort and less fatigue on waists and knees but also protects the electro static discharge ● Semipermanent antistatic property (10 7 10 9 /m 2 ) ● No carbonblack surface active agent heavy metal inorganic saline ● Superior chemical resistance abrasion resistance and durability (Environmentfriendly and nontoxic TPU products with the high intensity) ● Fingerpressure therapy effect and antifatigue effect for sinews and bones ● Standard size: 600mm x 900mm ● Various Logoprintings are available How to order Surface resistivity Volume resistivity Surface resistance after abrasion Permanence DI water Isopropyl Alcohol Hexane Hardness Wrist Strap How to order Properties Specifications Method Surface Resistivity Rockwell scale (A type) 10 8 10 9 /m 2 10 7 10 8 /m 2 10 8 10 9 /m 2 No Change 3040 Code Descriptions Packing Unit KMWS06 KMWS09 KMWS12 6 ft 9 ft 12 ft 1pcs / 250bags ASTM D257 ASTM D257 ASTM D613 ASTM D257 ASTM D543 ASTM D638 Wrist strap is a tool grounding the static electricity and prevents its accident 1MΩ Resistor is attached on it for keeping off countercurrent and any length for Coil Cord is available according to working environments ● 1MΩ Resistor is attached for preventing the countercurrent ● Class: Clip and terminal types are available ● Applications: Conductive wrist band for Semiconductors and electronic parts ESD PRODUCTS 6 KM ESD Cushion Mat KM WS09 ESD PRODUCTS 63
