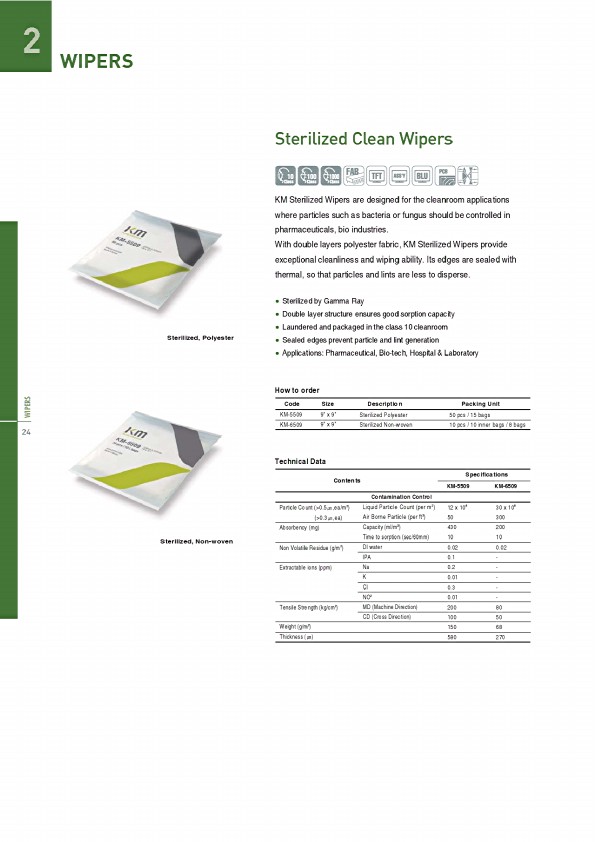

2 WIPERS WIPERS 24 Sterilized Polyester Sterilized Nonwoven Sterilized Clean Wipers KM Sterilized Wipers are designed for the cleanroom applications where particles such as bacteria or fungus should be controlled in pharmaceuticals bio industries With double layers polyester fabric KM Sterilized Wipers provide exceptional cleanliness and wiping ability Its edges are sealed with thermal so that particles and lints are less to disperse ● Sterilized by Gamma Ray ● Double layer structure ensures good sorption capacity ● Laundered and packaged in the class 10 cleanroom ● Sealed edges prevent particle and lint generation ● Applications: Pharmaceutical Biotech Hospital & Laboratory How to order Code Size Description Packing Unit KM5509 9" x 9" Sterilized Polyester 50 pcs / 15 bags KM6509 9" x 9" Sterilized Nonwoven 10 pcs / 10 inner bags / 8 bags Technical Data Contents Particle Count (>05㎛ea/m 2 ) (>03㎛ea) Absorbency (mg) Non Volatile Residue (g/m 2 ) Extractable ions (ppm) Tensile Strength (kg/cm 2 ) Weight (g/m 2 ) Thickness (㎛) Contamination Control Liquid Particle Count (per m 2 ) Air Borne Particle (per ft 3 ) Capacity (ml/m 2 ) Time to sorption (sec/60mm) DI water IPA Na K Cl NO 2 MD (Machine Direction) CD (Cross Direction) Specifications KM5509 KM6509 12 x 10 6 50 430 10 002 01 02 001 03 001 200 100 150 580 30 x 10 6 300 200 10 002 80 50 68 270

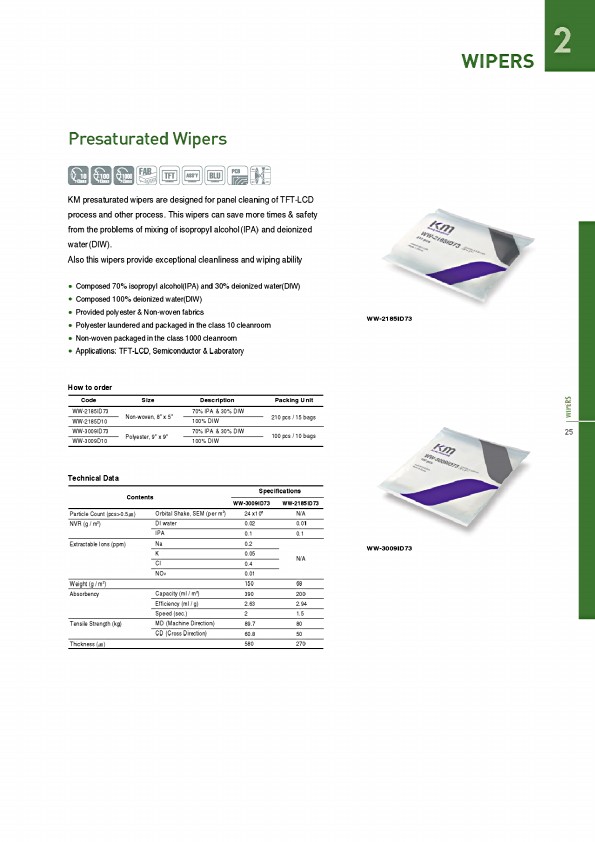

Presaturated Wipers KM presaturated wipers are designed for panel cleaning of TFTLCD process and other process This wipers can save more times & safety from the problems of mixing of isopropyl alcohol(IPA) and deionized water(DIW) Also this wipers provide exceptional cleanliness and wiping ability ● Composed 70% isopropyl alcohol(IPA) and 30% deionized water(DIW) ● Composed 100% deionized water(DIW) ● Provided polyester & Nonwoven fabrics ● Polyester laundered and packaged in the class 10 cleanroom ● Nonwoven packaged in the class 1000 cleanroom ● Applications: TFTLCD Semiconductor & Laboratory How to order Code Size Description Packing Unit WW2185ID73 WW2185D10 Nonwoven 8" x 5" 70% IPA & 30% DIW 100% DIW 210 pcs / 15 bags WW3009ID73 WW3009D10 Polyester 9" x 9" 70% IPA & 30% DIW 100% DIW 100 pcs / 10 bags Technical Data Particle Count (pcs>05㎛) NVR (g / m 2 ) Extractable Ions (ppm) Weight (g / m 2 ) Absorbency Tensile Strength (kg) Thickness (㎛) Contents Orbital Shake SEM (per m 2 ) DI water IPA Na K Cl NO2 Capacity (ml / m 2 ) Efficiency (ml / g) Speed (sec) MD (Machine Direction) CD (Cross Direction) Specifications WW3009ID73 WW2185ID73 24 x10 6 002 01 02 005 04 001 150 390 263 2 897 608 580 N/A 001 01 N/A 68 200 294 15 80 50 270 WW2185ID73 WW3009ID73 WIPERS 2 WIPERS 25
